Grips & Fixtures
Push & Pull Out Gripping Fixtures
Valve Pull Out Fixture - TJ 130
About the Grip
For measurement of Pull Out force of various sizes of Tube Valves used in tyre tubes.
Tyre Valve Pull Out & Insertion Test - TJ 162
About the Grip
- Used for pull out test of the tyre valve.
- Diameter range can be customised as per the end use & application
H- Adhesion- For Sealants TJ-131
About the Grip
For measurement of Adhesive forces of sealants.
Tile Adhesion Fixture for concrete - TN 235
About the Grip
– For measurement of adhesive forces of various sealants in a multi-sample setup.
– Each testing table comes with a concrete – dolly setup with a Top pull out fixture.
– Saves times due to the X-Y movement of the table and multiple samples are tested efficiently.
– YouTube link to see the testing video : https://www.youtube.com/watch?v=CHiu71Rjc3o&
Perpendicular Grain Tensile – TJ 148
About the Grip
– For testing specialized shaped wooden samples as per ASTM D143 & BS 373
Parallel Grain Tensile – TJ 149
About the Grip
– Tensile testing of Wooden Dumbell samples.
– Sample dimensions 25mm x 50mm x 460mm (check with the sales office for customised sample testing.)
– Testing Standard ASTM 413 & BS 373.
Cleavage Test for Monnin Specimen – TJ 151
About the Grip
– For testing Monnin type wood specimen.
– Crosssection 50mm x 76mm.
– Samples as per ASTM D143 & BS 373.

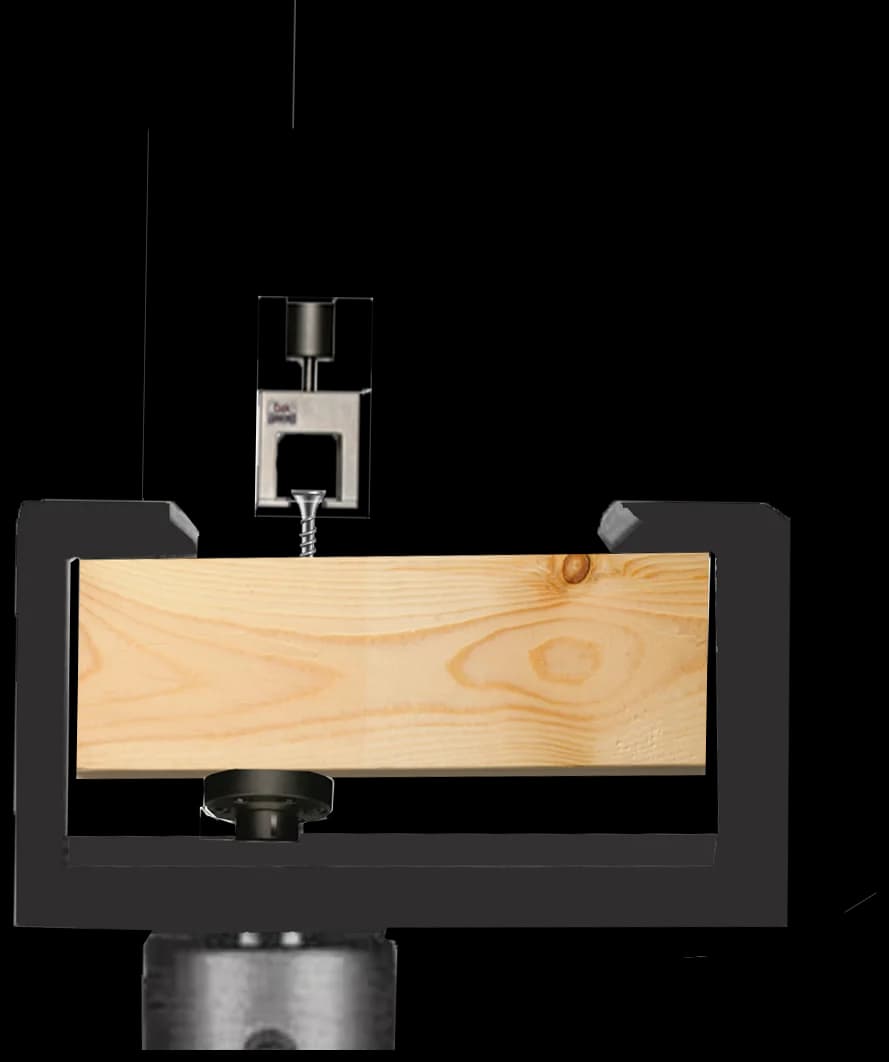

Nail or Screw withdrawal – TJ 147
About the Grip
– For measurement of Max load to withdraw Screw or Nails from the wood specimen.
– ASTM D1037, ASTM D413 & ASTM D 1761.
– Sample size 50mm x 50mm x 150mm.
Needle Piercing Force Measurement- TJ 139
Features

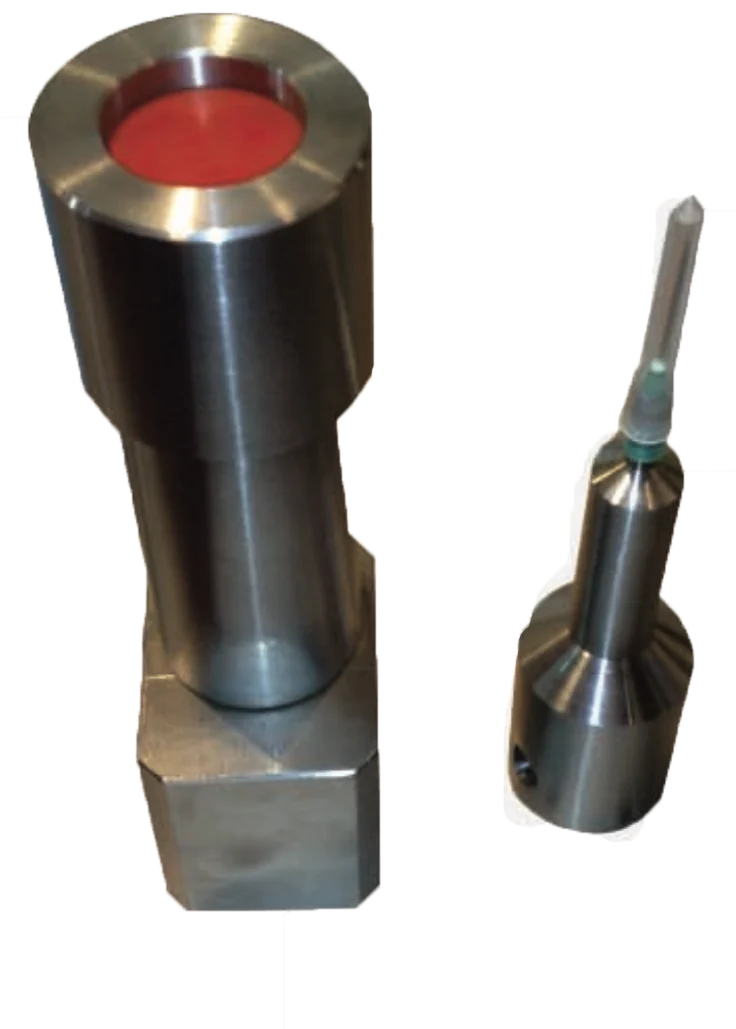

Attachment for measurement of Needle Piercing force measurement.

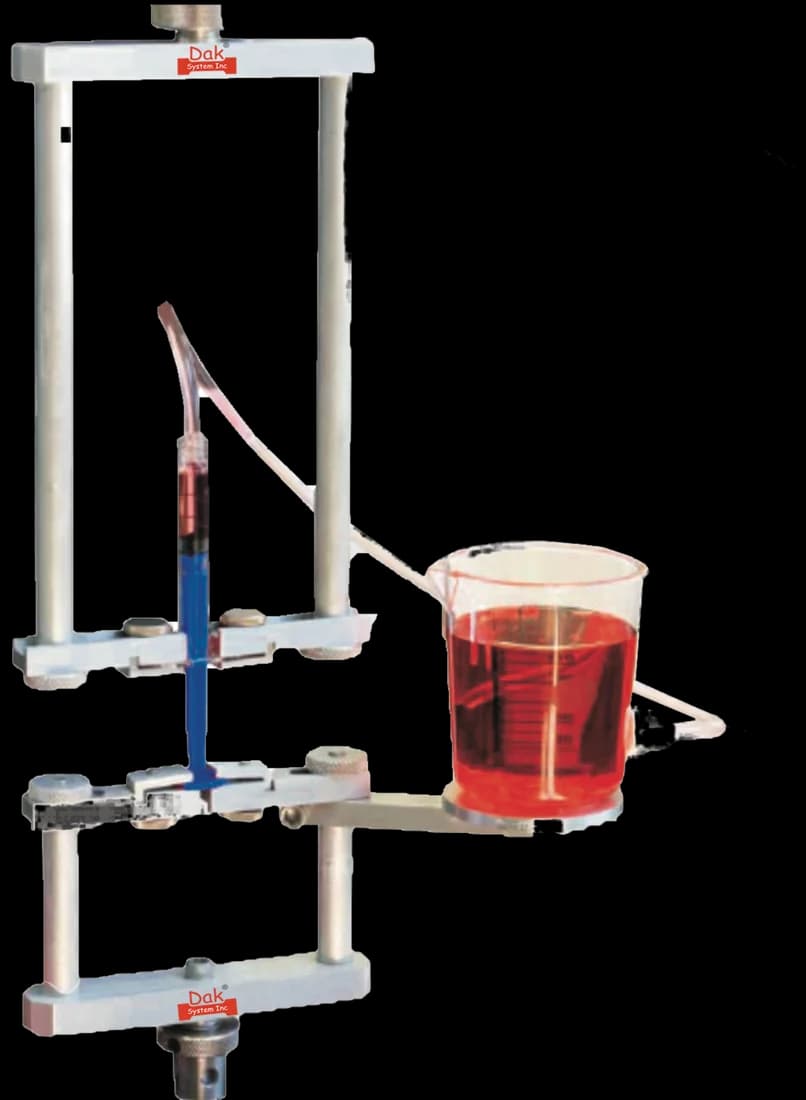

Syringe Push Test fixture-TJ 201
About the Grip
– This Syringe-Push Test Fixture can accommodate a variety of syringe sizes and volumes.
– Designed to meet the test requirements of ISO 7886-1 Annex G for sterile, single-use hypodermic syringes.
– This includes any plastic syringe used for the injection or aspiration of fluids but excludes insulin syringes, glass syringes, syringes with permanent needles, syringes with power-driven pumps pre-filled syringes or injection kit syringes.
Operation
According to ISO 7886-1 the syringes must be tested at 100 mm/min and operational forces are measured as a function of three different volumes:
Â
– Less than 2 ml
– Between 2ml & 50 ml
– Greater than 50 ml
Features
– This fixture allows for precise friction measurement for syringe plungers.
– Allows for force measurements to eject medications from syringe or syringe/needle devices.
Syringe Insertion Force Measurement Fixture- TJ 202
About the Grip
– The Syringe Test Fixture is designed to determine the forces necessary to collect the force v/s time data in an effort to evaluate the performance of syringes and syringe/needle combinations.
Â
– It determines breakaway forces at the beginning of injections as well as sustaining forces throughout the injection process.
Â
– This fixture can also be positioned downwards to perform a needle cap pull-off test (lower grip to perform needle pul-off is not included).
Application
This fixture allows for the ejection of medications and fluids from syringes or needle devices.
- Syringe Testing
- Blood & Urine Bag
- Bio Bath
- Gloves
- Syringe Needles
- Catheter
- Adhesive Tapes
- Capsules & Tablets
Dimensions
– Maximum syringe diameter 20mm (O.78 in)
– Includes two threaded holes for the optional drip tray.
– Ease of plunger movement test as per ISO 7886-1
